Product Details:
|
| Product Name: | 2x6 Led Array Lens Cover 60x60 Degree For 12 Watts Led Light Components | Lens Size: | L173*W71.4*H11.5MM |
|---|---|---|---|
| PCB Size: | L146xW43xH1.5mm | Beam Angle: | 60X60° |
| Match Led: | 3535 SMD , OSRAM P8/P9, 5050 | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 12 Series |
| High Light: | 60 Degree Led Array Lens,2x6 Led Array Lens,Led Light Components Lens Array |
||
|
Basic Information
|
|
|
Model
|
SOE-2X6-60x60
|
|
Size
|
L173*W71.4*H11.5MM |
|
Beam Angle
|
60*60 degree
|
|
Match LED
|
SMD 3535 , OSRAM P8/P9, 5050
|
|
Transmittance
|
92%
|
|
LEDs Qty
|
12 pcs
|
|
Material
|
PMMA/ PC
|
|
Application
|
spot light/Par light/track light
|
Led Street Light Lens Drawing:
Led Street Light Lens Distribution:

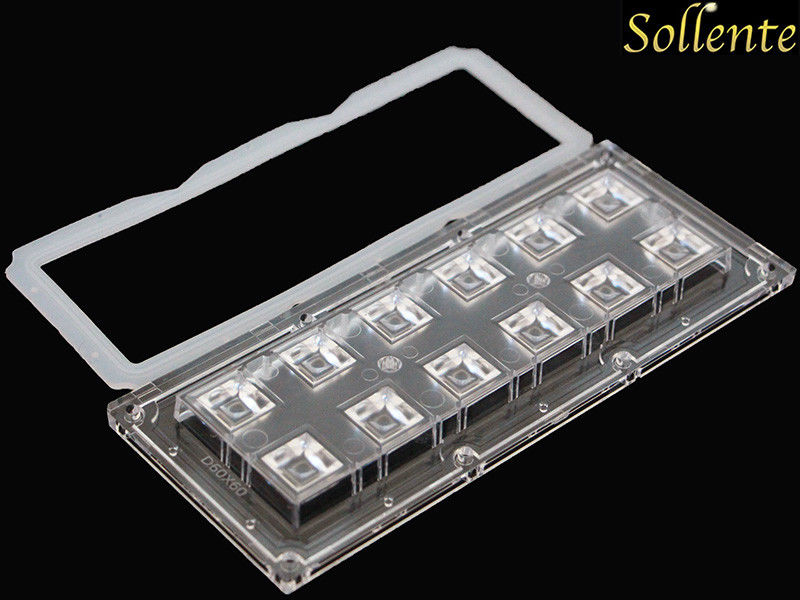

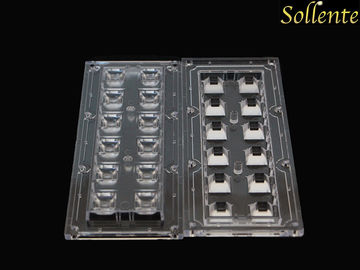

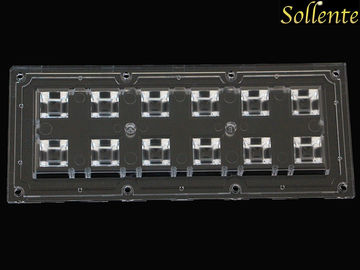

2x6 Led Array Lens Cover 60x60 Degree
Material: imported optical grade PC
Material: PC
Polycarbonate(PC) is a durable material. It has high impact-resistance. The characteristics of polycarbonate compare to those of polymethyl methacrylate (PMMA, acrylic), but polycarbonate is stronger and will hold up longer to extreme temperature. Polycarbonate is highly transparent to visible light, with better light transmission than many kinds of glass.
