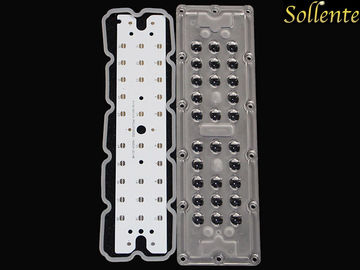

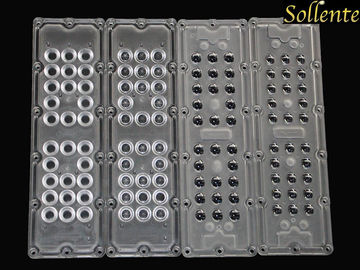

High Lumens Stable 3V - 3.4V CT SMD LED Modules For 5050 LED

High Lumens Stable 3V - 3.4V CT SMD LED Modules For  5050 LED
High Lumens Stable 3V - 3.4V CT SMD LED Modules For  5050 LED High Lumens Stable 3V - 3.4V CT SMD LED Modules For  5050 LED

Large Image :  High Lumens Stable 3V - 3.4V CT SMD LED Modules For 5050 LED

Product Details:

Place of Origin: China
Brand Name: Sollente
Certification: CE, Rohs
Model Number: SOE-SL28L-80x150

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: High Lumens Stable CT SMD LED Street Light Modules For 5050 LED Lens Size: 236x70x8.3mm
PCB Size: L217.7*W43.5*T1.5mm Beam Angle: 80x150 Degree
Match Led: 5050 SMD, Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 2 Series 14 Parallels
Led Voltage: 3-3.4V
High Light:

led smd module

,

Cree LED Module

High Lumens Stable CT SMD LED Street Light Modules for 5050 LED





Quick Details:

1. Dimension:     236x70x8.3mm

2. Beam Angle:   80x150 degree

3. Match Led:     SMD 5050,

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:



Product Name High Lumens Stable CT SMD LED Street Light Modules for 5050 LED
Model No SOE-SL28L-80x150
Main parts 28 Leds Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 236x70x8.3mm
PCB Size 217.7*43.5*1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

2 series 14 parallel

LED details 3-3.4V
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia











Led Street Light Lens Drawing:



High Lumens Stable 3V - 3.4V CT SMD LED Modules For  5050 LED 0











80x150 degree Led Street Light Lens Distribution:

High Lumens Stable 3V - 3.4V CT SMD LED Modules For  5050 LED 1

















Related SMD 5050 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-SL28L-60



60° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-90



90° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-80x150



80x150° 236x70x8.3mm 217.7*43.5*1.5mm







Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.
Do not use any commercial cleaning solvents.









Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on



Areas of application
Technical street lighting
Decorative outdoor lighting in public areas
Area lighting in public areas






Stable color temperature, high CRI, high Lumens

Adopt first-class brand Leds, high lumens and low thermal resistance. Optional led brands, such as Osram, Lumileds, Cree. Optical light distribution, no glare, no light pollution, high uniformity.
