Payment & Shipping Terms:
|Product Name:||Asymmetric Led Street Lamp COB Modules , Led Street Light Lens With Reflector||Diameter:||107mm|
|Height:||31mm||Beam Angle:||160x70 Degree|
|Match Led:||50-200W||Material:||Optical Grade High Borosilicate Glass|
|Working Temperature:||-50 To 60 °C||Transmittance:||91.6%|
|Accessories:||Lens, Gasket , Metal Holder , Reflector , COB Led|
LED lamp Module,
LED COB Module
1. Dimension: Dia 107mm Height 31mm
2. Beam Angle: 160x70 degree
3. Match Led: 50-200w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder,silicon gasket
6. Chips Package size < 41mm
|Product Name||Asymmetric Led street lamp COB Modules , Led street light lens with reflector|
|Main parts||Optical glass Lens+silicone gasket+metal holder+Reflector+Multichip LED+Driver|
|Lens Material||Borosilicate Glass|
|Quality guarantee||If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.|
Europe, South America,North America, Asia
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

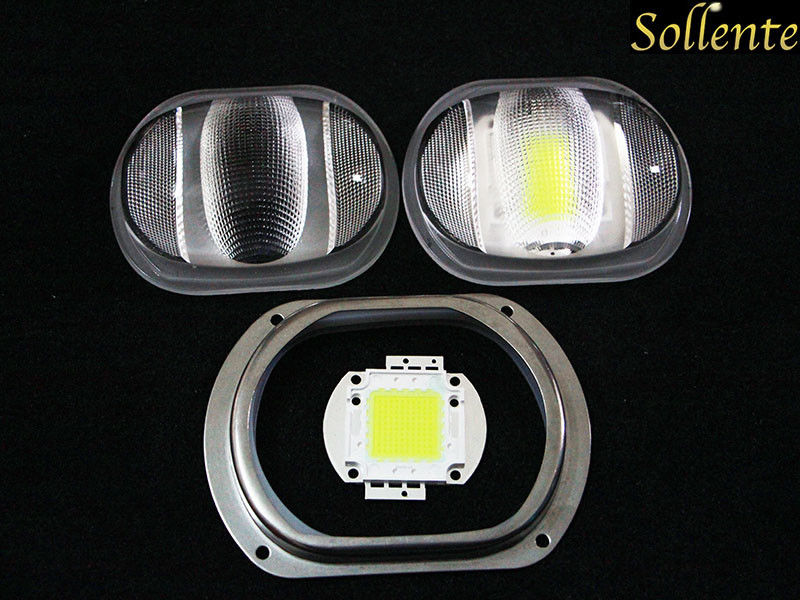

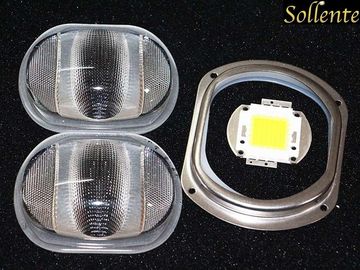

Asymmetric Street lamp COB Led Module Pictures:
Led Glass Lens Drawing:
Asymmetric Led Street lamp COB modules Distribution:
Related Glass lens:
|Model No.||Lens angle||Lens Dimensions||Match Led|
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
1. Your inquiry will be replied by professional sales in 8 hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Distributorship is offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. 2 years warranty.
6. Provide you the lowest freight cost and the fastest service.
7. Professional engineers to design and develop new led street light components according to your requirements.
8. we can design the color boxes for you when you have larger quantity.
9. we can use your logo and label on products.
