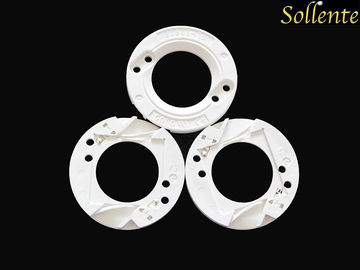

Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector

Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector
Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector

Large Image :  Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: E2828
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Packaging Details: Carton Box
Delivery Time: 10-18 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000 pcs / week
Detailed Product Description
Product Name: Solderless LED COB Holder For Citizen CLU046 Diameter: 46mm
Height: 4mm Color: White
Certificate: CRU Material: PBT V0
Wire Spec: 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) Match Led: CLU046, CLU730, HM40
High Light:

led array holder

,

led cob holder

Solderless LED COB Holder for Citizen CLU046 , PBT COB Connector



Quick Details:

1. Dimension:     Diameter 44mm H4.15mm
2. Match Led:
CLU046, CLU730, HM40


                           COB Led Array base 28x28mm Luminous surface diameter 25mm
3. Materials :      PBT V0
4. Wire Spec.     18AWG, 20AWG, 22AWG (0.32-0.81m㎡)

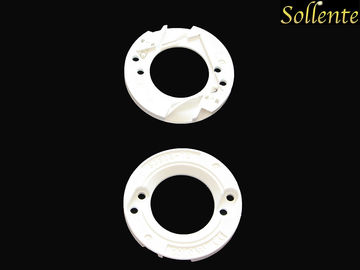

 Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector 0
Specification:



Voltage Rating 72 V
Amperage Rating 3.6
Weight 4g
Screw Size M3
Wire Strip Length 6mm (.24")
Wire 18-22AWG Push-In (.32-.81mm2)
Body Material PBT UL94 V-0
Contacts Beryllium Copper Nickel Plated
Holding Clip Stainless Steel
Screw Torque (Max) 10 LBS
Temp Rating 155C
RoHS Compliant Yes
Package Quantity 1,000 per carton
Packaging Plastic Trays
Array Source

Citizen, Edison

Array Series CLU046, CLU730, HM40
UL File # E476326


It's a single piece, solderless connector for Cree CXA/B3050 3070 series
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.


Advantages
LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.




COB HOLDER Drawing:

 Solderless CLU046 / CLU730 COB LED Holder for Citizen CLU046 , PBT COB Connector 1

Related COB HOLDER:

Model No. Lens Dimensions Match Led

1512


D35mm*H4.15mm CXA1507, CXA1512, CXA1520

1816


D35mm*H4.15mm CXA1816, CXB1820, CXA1850

1830


D35mm*H4.15mm CXA1830

2520


D39mm*H4.15mm CXA2520, CXB2530, CXA2540, CXA2590

3050


D44mm*H4.15mm CXA3050, CXA3070

1926


D35mm*H4.15mm Citizen Series: AC COB CLL296/297/298
1313 D36mm*H4mm

Citizen Series: CLL022, CLU024, CLU026
Edison Series: HM05, HM09, HM13

1919 D36mm*H4mm

Citizen Series: CLL032, CLU034, CLU036
Edison Series: HM16, HM24, HM30









Material:

Polybutylene terephthalate (PBT) is a thermoplastic engineering polymer that is used as an insulator in the electrical and electronics industries. It is a thermoplastic (semi-)crystalline polymer, and a type of polyester.

PBT is resistant to solvents, shrinks very little during forming, is mechanically strong, heat-resistant up to 150 °C (or 200 °C with glass-fibre reinforcement) and can be treated with flame retardants to make it noncombustible.

Material:

PBT is a superior thermoplastic polyester material: it has good heat resistance, low moisture absorption, chemical resistance, high dielectric strength and dimensional stability
