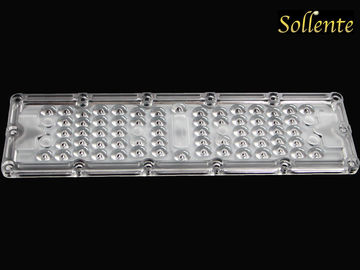

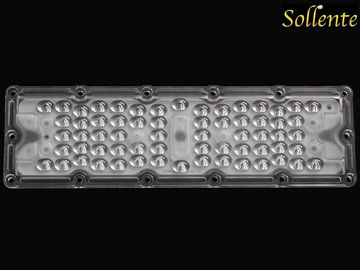

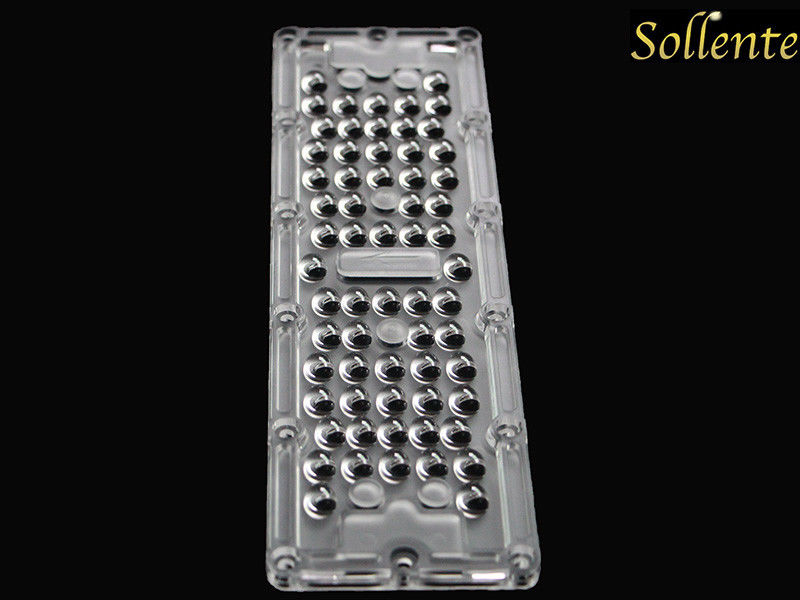

DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module

DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module
DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module

Large Image :  DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module

Product Details:
Place of Origin: China
Brand Name: Sollente
Certification: CE, Rohs
Model Number: SOE-SL64W-80x150
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: Anti-UV 60W Outdoor Led Module With Street Light Lens 80x150 Degree Lens Size: 236x70x6.9mm
PCB Size: L220*W54*T1.5mm Beam Angle: 80x150 Degree
Match Led: 3030 SMD , OSRAM S5, Lumileds 2D Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 8 Series 8 Parallels
Led Voltage: 3-3.4V/W Heat Sink: L300*W70
High Light:

led smd module

,

Cree LED Module

DC 24V Led Solar Light Module , SMD 3030 Led Module for Solar Light





Quick Details:

1. Dimension:     236x70x6.9mm

2. Beam Angle:   80x150 degree

3. Match Led:     SMD 3030 , OSRAM S5 ,

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:



Product Name DC 24V Led Solar Light Module , SMD 3030 Led Module for Solar Light
Model No SOE-SL64W-80x150
Main parts  Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 236x70x6.9mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

8 series 8 parallel

LED details 3-3.4V , 350mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia













Led Street Light Lens Drawing:



DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module 0



















80x150 degree Led Street Light Lens Distribution:

DC 24V Led Solar Light Module , OSRAM S5 / SMD 3030 Led Module 1







Features :

  1.  This SKD Street Light lens with 64pcs 3030 Led PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2. Each PCB 8 series 8 parallel with 3V 350mA SMD3030, It could work for Solar Light.
  3.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  4.  Industry-leading thermal management utilizing technology
  5.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  6.  Optic lenses are available for projects that need smaller beam angles, like 80x150°, 90x120°, 90°, 60° , 30° etc.











Related SMD 3030 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-SL64W-30



30° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-60



60° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-90



90° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-90x120



90x120° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-80x150



80x150° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-S80x150



80x150° 236x70x6.9mm L220*W54*T1.5mm











Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice :
DC 24V or AC 100-240V Input voltage , Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available

10). Led waterproof driver

Optional brands of Led driver, detached design of power supply. The isolating switching power supply, low voltage output, low harmonics, no strobe, high efficiency, ling life-span.







Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
