3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle

3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle
3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle 3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle

Large Image :  3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL30W-CR120
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description

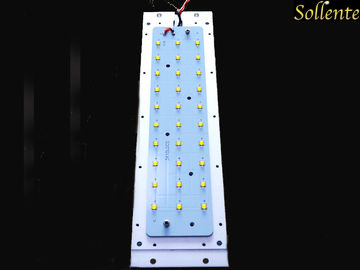

Product Name: 3x10 XTE LED Street Light Retrofit Kits With Lens For Led High Pole Lamp Modules Lens Size: L256.6*W78.6*9.1mm
PCB Size: L228*W53*H1.5mm Beam Angle: 120 Degree
Match Led: 3535 SMD, Cree XTE XPE Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 10 Series 3 Parallels
Led Voltage: 2.9-3.4V Lumen: 160 Lm/W
LED Driver: AC110-265V
High Light:

pole light led retrofit kits

,

LED retrofit light kit

3x10 XTE LED Street Light Retrofit Kits With Lens For Led High Pole Lamp Modules





Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   120 degree

3. Match Led:      SMD 3535 , Cree XTE , Rebel-E , Nichia 219A

4. Materials :       Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:        >91%









Specifications:

Product Name

3x10 XTE LED Street Light Retrofit Kits With Lens For Led High Pole Lamp Modules

Model No SOE-SL30W-CR120
Main parts 30W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available

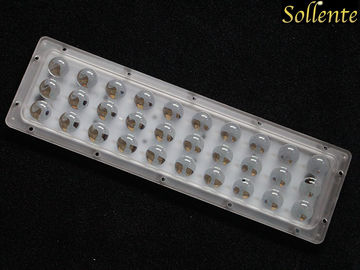

Lens Material PC Optical
MOQ 1pcs
Lens size L256.6*W78.6*9.1mm
PCB Size 233x55x1.5mm , PCB could design as clients reuqest
Driver enclosure plastic or aluminum case for choice
PCB Circuit

10 series 3 parallel

Cree XTE  2.9-3.4V , 160 lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America









3x10 XTE LED Street Light Retrofit Kits lens Drawing:

3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle 0
















3x10 XTE LED Street Light Retrofit Kits lens Distribution:

3*10 XTE LED Retrofit Light Kit For LED High Pole Lamp Modules 120 Degree Beam Angle 1









Features :

  1. This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps , each CREE XTE Led could use as 1-5w , one module could be 30W,  60W or 90W, Just need changing Heat sink.
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 60 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 90x90 degree, 87x134 degree , 70x155 degree , 120 degree









Related High power Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SL30W-LM87X134



87X134° 250x74x9.6mm 228x53x1.5mm

SOE-SL30W-LM90X90



90x90° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-CR120



120° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-LM90



90° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-LM70x155



70x155° 250x74x9.6mm 229x53x1.5mm











Competitive Advantage:

1). Using high quality imported 3535 SMD LED , Cree XTE , XPG , XPE
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty












Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on





 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT
