3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light

Certification
China Sollente Opto-Electronic Technology Co., Ltd certification
China Sollente Opto-Electronic Technology Co., Ltd certification
Since the beginning of our company's establishment, we have always received your led street light modules, thanks to your quality and professionalism.

—— Mr. KULIQI

Hope we will expand our business by continuing a cooperation like you, Thank you Alina for the help you gave me every time I need.

—— Mr. VALON

a very big thanks to you & your company for the impressively good service & high quality of your goods that you have supplied us, on time, good price.

—— Mr. RB van der Merwe

I'm Online Chat Now

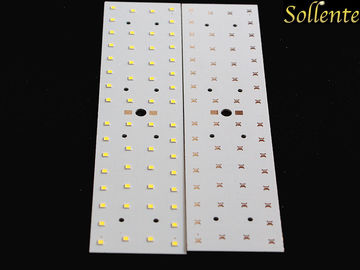

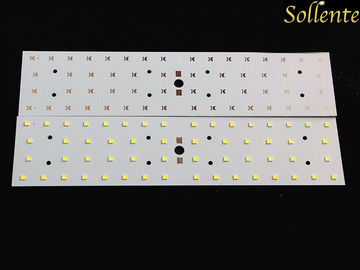

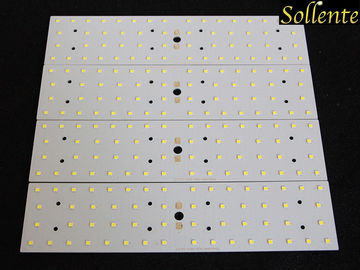

3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light

3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light
3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light 3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light 3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light

Large Image :  3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56WPCB
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: SMD 3030 PCB LED Modules Osram Chips For 50W Led Street Light Lens Size: L256.6*W78.6*H7.1mm
PCB Size: L233xW55xH1.5mm Beam Angle: 30, 60, 90
Match Led: 3030 SMD , OSRAM S5 , Luminleds 2D Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 7 Series 8 Parallels
Led Voltage: 6-6.8V Heat Sink: L310*W80*H43mm
Led Current: 150mA
High Light:

smd led module

,

pcb led module

SMD 3030 PCB LED Modules Osram Chips for 56W Led Street Light



Quick Details:

Product name 50W MCPCB
PCB color white, black or others
Voltage 42V
Current 1200mA
Circuit 7 series 8 Parallels





3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light 0





Specifications:



Product Name

SMD 3030 PCB LED Modules Osram Chips for 50W Led Street Light

Model No SOE-SL56WPCB
Parts 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 8 parallel or Customize

LED details 6-6.8V , 150mA , 120-130lm/w
CCT 2900-3200K  4000-4500K 5000-5500K 6000-6500K
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia









SMD 3030 LED PCB Module Drawing:

3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light 1







Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 155x80°, 145x75°,  60x90°, 90° , 30x70° , 30° , 60° etc.





Contact Details:

Attn :  Alina Xiang
Tel :  +86 13825255182
Email :  alina@sollente.com
Email :  alina.x@yahoo.com
Skype :  alinaxiang33
WhatApp :  +86 13825255182
QQ :  45211682









Related SMD 3030 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm





Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available









Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for Flood light, High bay Light, Industrial Leight, Warehourse Light






 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT





Our Seviece:



1. Your inquiry will be replied by professional sales in 8 hours.

2. OEM & ODM are welcomed, OEM brand is available.

3. Distributorship is offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.

5. 2 years warranty.

6. Provide you the lowest freight cost and the fastest service.

7. Professional engineers to design and develop new led street light components according to your requirements.

8. we can design the color boxes for you when you have larger quantity.

9. we can use your logo and label on products.
