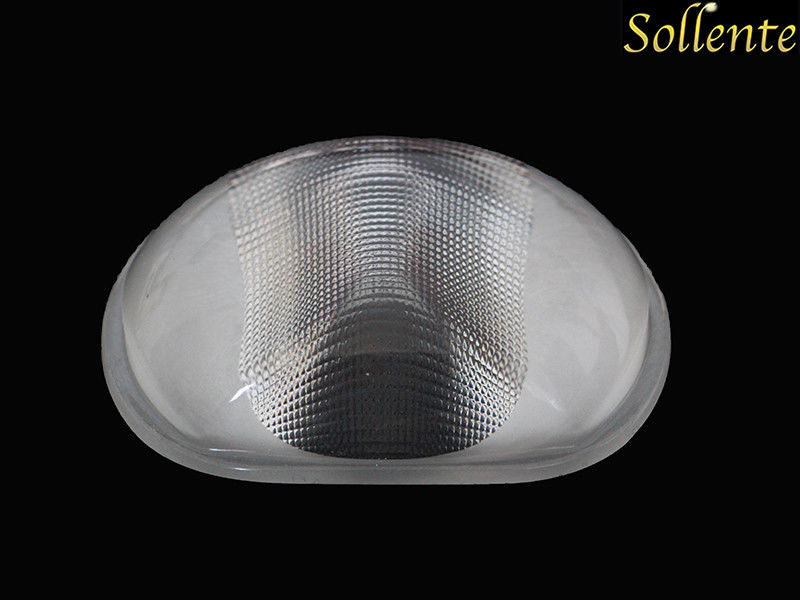

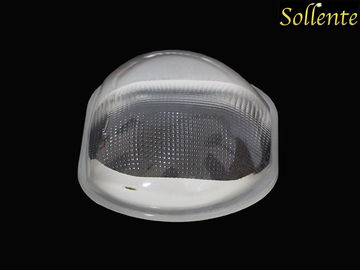

107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp

107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp
107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp 107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp

Large Image :  107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL110-27A
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Detailed Product Description
Product Name: Led Glass Lens Diameter: 107mm
Height: 33mm Beam Angle: 135x65 Degree
Match Led: 30-200W Material: Optical Grade High Borosilicate Glass
Working Temperature: -50 To 60 °C Transmittance: 91.6%
Accessories: Lens, Gasket , Metal Holder , Reflector , COB Led Len Type: Anti Glare
High Light:

glass light lenses

,

led optical lens

107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp





Glass lens size:L107mm x W 86mm x H 33mm

Temperature: -30 to +200 degrees

Product Description: Non-spherical design

Viewing angle: 135x65 degrees

Light transmittance up 93%

Features: High brightness, Uniform Light, No dark shadows

Bracket length: 130mm

Bracket width: 101mm

Suitable Lighting Source: 20W 30W 50W 100W 120W High Power Led


Net Weight: 415g
Package:

1x 107mm glass lens

1xstainless steel ring

1x aluminum reflector

2x Silicone ring











Specifications:



Product Name

107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp

Model No SOE-SL110-27A
Main parts Optical glass Lens+silicone gasket+metal holder+Reflector+Multichip LED+Driver
Lens Material Borosilicate Glass
MOQ 10pcs
Lens size 107x87mm
Sample 3 days
Delivery 7-9 days
Certificate ROHS, SGS
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market

Europe, South America,North America, Asia









Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1


Optical Grade High Borosilicate Glass, This material increases light transmittance through the lens compared to plastics and lower-quality glass.
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1









Led Glass Lens Drawing:

107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp 0



Distribution:





107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp 1







Related Glass lens:



Model No. Lens angle Lens Dimensions Match Led

SOE-SL107-A4



160x70° D107mm*H31mm 50-200W

SOE-SL107-A3



135x65° D107mm*H32mm 50-200W

SOE-SL107-A2



140x70° D107mm*H33mm 50-200W

SOE-SL107-A



140x70° D107mm*H32mm 50-200W

SOE-SL106-27A



155x80° D107mm*H31mm 50-200W









Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability








Application:

It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
