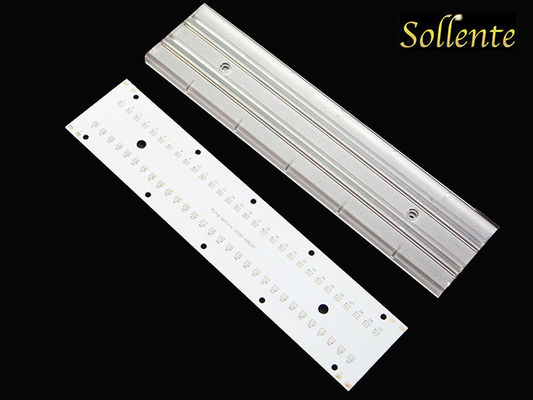

60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree

60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree
60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree 60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree

Large Image :  60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree

Product Details:
Place of Origin: China
Brand Name: Sollente
Certification: CE, Rohs
Model Number: SOE-LINE30x90
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree

Description
Product Name: Linear Optic Lens With 60 Led SMD 3030 Double Beam Angle 30x90 Degree Lens Size: 285.8x70x9.48mm
PCB Size: L283*W62*T1.5mm Beam Angle: Double 30x90 Degree
Match Led: 3030 SMD Material: Optical Grade PC
Efficiency: 91% Led Current: 350mA Or 150mA
Led Voltage: 3-3.4V Or 6-6.8V
High Light:

led light fittings

,

led light lens 30x90 Degree

,

LED Optics Lenses 3030 SMD

Linear Optic Lens with 60 Led SMD 3030 Double Beam Angle 30x90 degree





Specifications:



Type Led Linear Lens
Model Number SOE-LINE30x90
Material PC
View Angle(Fwhm) Double 30x90°
Reflective Efficience 90%
Dimension L285.8xW70xH9.48mm
Use Temperature -35℃~+120
Payment Term T/T, PayPal, Western Union
Packing Bubble bag
Lead Time 3-7 days for sample order,7-15 days for mass product
Application Led Line lights, Led shelf lights, Led warehouse lights










Led Lens Drawing:
60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree 0






Led Lens Distribution:
60 Led Linear Lens SMD 3030 With Double Beam Angle 30x90 Degree 1





Features :

Product combined with Geometric Surface Design,High light efficiency; On the basic character of 3030 series light, show the application of the Combination of optical and construction.


Application:
Led Line lights, Led shelf lights, Led warehouse lights, Led parking lights, Led wall lights, Aisle Light, Corridor Light......




Related SMD 5050 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-SL28L-60


60° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-90


90° 236x70x8.3mm 217.7*43.5*1.5mm

SOE-SL28L-80x150


80x150° 236x70x8.3mm 217.7*43.5*1.5mm




Competitive Advantage:
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light






PMMA

PMMA is a strong and lightweight material.
PMMA transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces due to its refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV) light at wavelengths below about 300 nm (similar to ordinary window glass).

Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.
PMMA is an economical alternative to polycarbonate (PC) when extreme strength is not necessary. Additionally, PMMA does not contain the potentially harmful bisphenol-A subunits found in polycarbonate. It is often preferred because of its moderate properties, easy handling and processing, and low cost.









LED Applications

A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.

Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.

You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.
