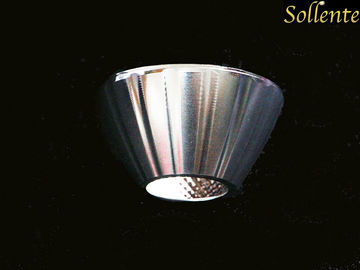

Product Details:
|
| Product Name: | Plastic COB Led Reflector For VERO 13 Indoor Architectural Lighting | Diameter: | 69mm |
|---|---|---|---|
| Height: | 40mm | Beam Angle: | 10 Degree |
| Match Led: | CREE, EDISON, CITIZEN, LUMILEDS, | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +120℃ | Efficiency: | 91% |
| Accessories: | COB Holder, Light Pipe, COB LED | ||
| High Light: | led cob reflector,high bay light reflector |
||
Quick Detail:
1. Dimension: Dia 69mm Height 40mm Bottom hole D26.5mm
2. Beam Angle: 10 degree
3. Match Led: Cree, Edison, Citizen,
4. Materials : Optical Grade PC

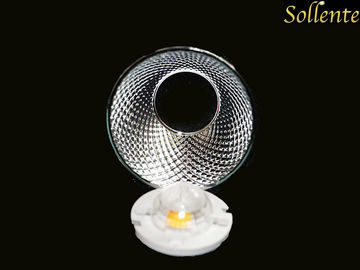

5. Accessories: COB holder, Light Pipe, COB LED
6. Efficiency: 91%
Specification:
| Type | Optical reflector |
| Model Number | SOE-COB-R69-10 |
| Material | PC |
| View Angle(Fwhm) | 10° |
| Reflective Efficience | 90% |
| Dimension | Φ69*40*26.5mm (diameter*height) |
| Use Temperature | -35℃~+120 |
| Payment Term | T/T, PayPal, Western Union |
| Packing | Bubble bag and box |
| Port | Shenzhen, Guangzhou |
| Lead Time | 3-7 days for sample order,7-15 days for mass produc |
| Application | Spotlight, down light, track light, Led Bean Container Light |
Matched Led:
| CREE | CITIZEN | SHARP | LUMILEDS | xxxxx | EDISON |
| CXA 13XX | CLL 010 | 2024 | CXM-14 | 1202 | HM05 |
| CXA 15XX | CLL 020 | 1215 | CXM-7 | 1205 | HM30 |
| CXA 25XX | CXM-9 |
Related Led Reflector:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-COB-R45-10/23/38
|
10° 23° 38° | D45mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 |
|
SOE-COB-R50-10/23/38
|
10° 23° 38° | D50mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 |
|
SOE-COB-R63-10/23/38
|
10° 23° 38° | D63mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R69-10/23/38
|
10° 23° 38° | D69mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R75-10/23/38
|
10° 23° 38° | D75mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R83-10/23/38
|
10° 23° 38° | D83mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R92-10/23/38
|
10° 23° 38° | D92mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R108-10/23/38
|
10° 23° 38° | D108mm*H38mm | CXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14 |
Product Application:
Led Track Lighting
Led Bean Container Light
Led Spot Light
Led Down Light
