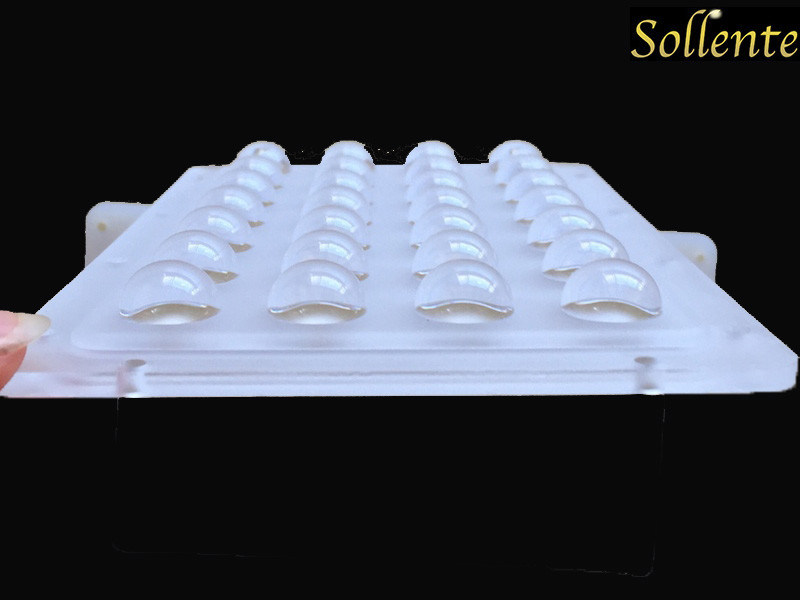

28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts

28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts
28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts 28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts

Large Image :  28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL28W-LM70x70
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 6-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts

Description
Product Name: 28W Led Street Light Kits , SKD Street Light Unassembled Parts Lens Size: L151.8*W95.4*H11.5mm
PCB Size: L132*W75*H1.6mm Beam Angle: 70x70 Degree
Match Led: Bridgelux 45mil Chip Led Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 14 Series 2 Parallels Or 7 Series 4 Parallels
Led Voltage: 3-3.6V Lumen: 160-170 Lm/W
High Light:

High Bay LED Retrofit Kits

,

pole light led retrofit kits

28W Led Street Light Kits , SKD Street light Unassembled parts​



Quick Details:

1. Dimension:     L151.8*W95.4*11.5mm

2. Beam Angle:   70x70 degree

3. Match Led:      High power led , K2 , P4

4. Materials :       Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, Led driver

6. Efficiency:        >91%







Specifications:

Product Name Led Street Tunnel Light Modules 28W With 70x70 degree Optical lens
Model No SOE-SL28W-LM70X70
Main parts 28W Lens+ Silicone gasket + AL PCB mounting leds + LED driver  (Meanwell Led driver is available)
Lens Material PC Optical
MOQ 1pcs
Lens size L151.8*W95.4*11.5mm
PCB Size L132*W75*H1.6mm , PCB could design as clients reuqest
Driver enclosure plastic or aluminum case for choice
PCB Circuit

14 series 2 parallel

Led details  3-3.6V , 160-170 lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America









28W Led Street Light Kits Drawing 151.83x95.43mm, height 14.81mm:



28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts 0













28W Led Street Light Kits 70x70 degree Distribution:



28W Street Light LED Retrofit Kits , SKD Street Light Unassembled Parts 1







Features :

  1. This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps , each Led could use as 1-3w , one module could be 28W or 56W.
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 60 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 70x140 degree , 65x135 degree.









Related High power Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SL28W-LM70x140



70x140° 151.8*95.9*9.6mm 132*75*1.6mm

SOE-SL28W-LM70X70



70X70° 151.8*95.4*11.5mm 132*75*1.6mm

SOE-SL28W-CR65X135



65X135° 151.8*95.9*8mm 132*75*1.6mm



28W Modules has a range of Street light and High bay light modules which have multiple lenses in a single array. Lens modules provide an easy and cost effective solution. All the Led modules are designed to allow modularization of light engines. They are also future-proof solutions allowing customers to easily adapt into latest generation of LEDs without compromising the design and performance of the luminaire.









Competitive Advantage:

1). Our High power led using high quality imported Bridgelux 45mil Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty












Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on








Our Services:



1. Your inquiry will be replied by professional sales in 8 hours.

2. OEM & ODM are welcomed, OEM brand is available.

3. Distributorship is offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.

5. 2 years warranty.

6. Provide you the lowest freight cost and the fastest service.

7. Professional engineers to design and develop new led street light components according to your requirements.

8. we can design the color boxes for you when you have larger quantity.

9. we can use your logo and label on products.
