30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels

30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels
30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels 30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels

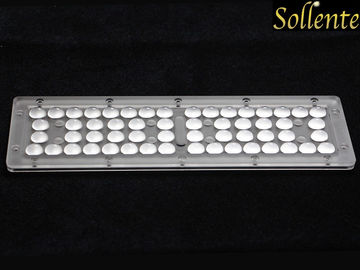

Large Image :  30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56W-30x70F
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels

Description
Product Name: 30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels Lens Dimension: L256.6*W78.6*7.1mm
Heat Sink: L310*W80*H43mm Beam Angle: 30x70 Degree
Match Led: SMD 3030, S5, Lumileds 2D Material: Optical Grade PC
Working Temperature: -35℃ +100℃ PCB Circuit: 7 Series 8 Parallels
Led Driver: AC 110-2265V
High Light:

led smd module

,

Osram LED Module

30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels



Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   30x70 degree

3. Match Led:     SMD 3030 OSRAM,

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:

Product Name 30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels
Model No SOE-SL56W-30x70F
Main parts 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable
Lens Material PC Optical
MOQ 10pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit 7 series 8 parallel
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe, South America,North America, Asia

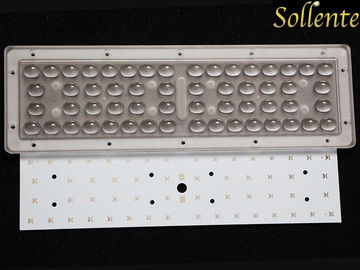

3030 SMD Led Street light Modules Drawing:

30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels 0















3030 SMD Led Street Light Lens Distribution:

30*70 Degree Reflector Replaceable SMD LED Modules 7 Series 8 Parallels 1



Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 30°, 145x75°,60x90°, 90°etc.







Related SMD 3030 Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm

SOE-SL56W145X75F



145X75° 250x74x8.2mm 229x53x1.5mm









Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.









Shipping and delivery time:



DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB|EXW|CIF|CFR
Sample availability YES, 3 days
Delivery time 5-6 working days





Application:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS and Metal Halid lamps as replacement .
