High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass

China High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass supplier
High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass supplier

Large Image :  High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass

Product Details:

Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL78

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Contact Now
Detailed Product Description
Product Name: High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass Diameter: 78mm
Height: 30mm Beam Angle: 120x60 Degree
Match Led: 30-100W Material: Optical Grade High Borosilicate Glass
Working Temperature: -50 To 60 °C Transmittance: 91.6%
Accessories: Lens, Gasket , Metal Holder , COB Led
High Light:

LED COB Module

,

LED Light Module

High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass






Quick Detail:


1. Dimension:    Dia 78mm Height 30mm
2. Beam Angle:  120x60degree
3. Match Led:     30-100w LEDs
4. Materials :      Glass
5. Accessories:  Metal holder,silicon gasket
6. Chips Package size < 49x39mm

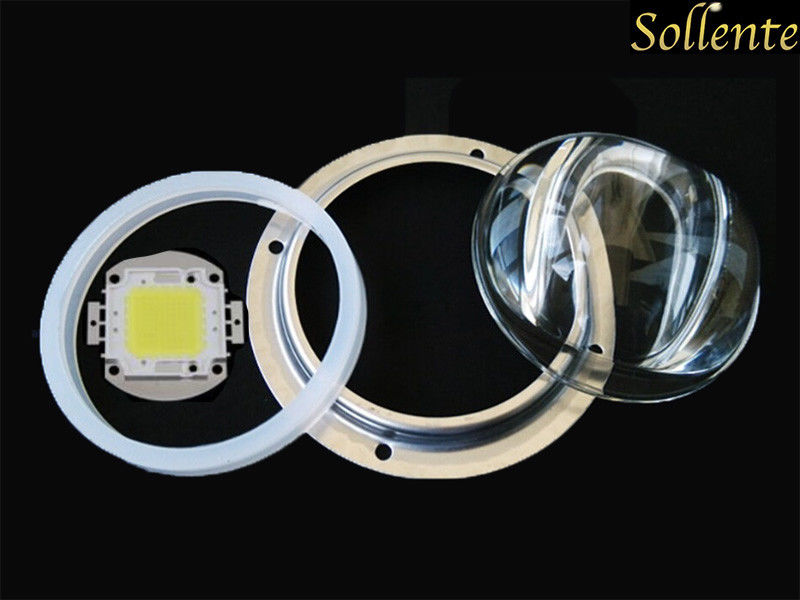

COB Led Module Pictures:
 High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass



Specifications:



Product Name

High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass

Model No SOE-SL78
Main parts Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver
Lens Material Borosilicate Glass
MOQ 10pcs
Lens size Dia 78mm Height 30mm
Sample 3 days
Delivery 7-9 days
Certificate ROHS, SGS
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market

Europe, South America,North America, Asia




Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1




Led Glass Lens Drawing:
High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass




Distribution:
High Power COB Integrated LED Module 6000K With Street Lens Borosilicate Glass





Related Glass lens:



Model No. Lens angle Lens Dimensions Match Led

SOE-SL107-A4


160x70° D107mm*H31mm 50-200W

SOE-SL107-A3



135x65° D107mm*H32mm 50-200W

SOE-SL107-A2


140x70° D107mm*H33mm 50-200W

SOE-SL107-A


140x70° D107mm*H32mm 50-200W

SOE-SL78


130x80 D78mm*H30mm 50-200W

SOE-SL92



150X120 D92mm*H26mm 50-200W




Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability







Application:
It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
